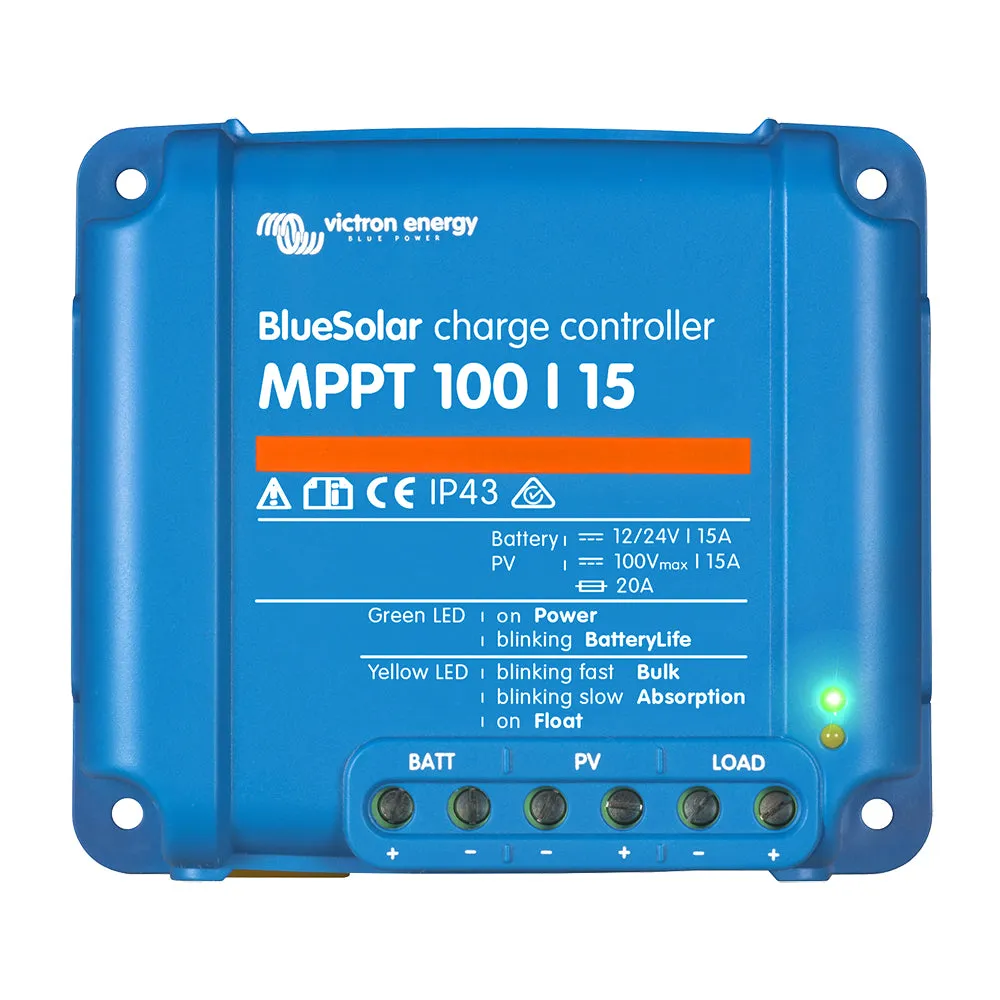

Victron Energy BlueSolar MPPT 100V 15A Charge Controller SCC010015200R

The Victron Energy BlueSolar MPPT 100V 15A Charge Controller SCC010015200R is a high-performance charge controller designed to maximize energy harvest from solar panels. With its ultra-fast Maximum Power Point Tracking (MPPT) technology, this controller improves energy harvest by up to 30% compared to PWM charge controllers and up to 10% compared to slower MPPT controllers, even in case of a clouded sky or changing light intensity.

Features:

• Ultra-fast Maximum Power Point Tracking (MPPT): Enhances energy harvest by up to 30% compared to PWM charge controllers and up to 10% compared to slower MPPT controllers.
• Load Output: Prevents battery over-discharge by connecting all loads to the load output. It disconnects the load when the battery reaches a pre-set voltage. It is short circuit proof and suitable for connecting inverters directly to the battery.
• Battery Life: Incorporates an intelligent battery management algorithm to prevent battery damage caused by incomplete recharging. The algorithm adjusts the load disconnect level daily to ensure nearly 100% recharge is achieved about once every week.
• Programmable Battery Charge Algorithm: Allows customization of the battery charge algorithm to suit specific requirements.
• Day/Night Timing and Light Dimming Option: Provides control over day/night timing and light dimming. Please refer to the software section on the Victron Energy website for more details.
• Programming, Real-time Data, and History Display Options: Can be programmed and monitored using the Color Control GX or other GX devices. Real-time data and history display are also available through a smartphone or other Bluetooth-enabled device with the VE.Direct Bluetooth Smart dongle.

Specifications:

• Model: SCC010015200R
• Maximum PV Open Circuit Voltage: 100V
• Maximum Charge Current: 15A
