Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Color | Green |
| Diameter, Mounting Hole | 5⁄16 in. |
| Height | 0.26" (6.6mm) |
| Lamp Type | LED |
| Luminous Intensity | 80 mcd (Typ.) |
| Maximum Operating Temperature | 105 C |
| Mounting Hole Size | 0.313 in. |
| Product Header | L79 Series Threaded LED Indicator Light |
| Series | |
| Standards | UL Listed, CSA Certified |
| Supply Voltage | 24 VDC |
| Termination | Lead Wires |
| Type | General Purpose |
| Viewing Angle | 60 ° (Typ.) |
| Voltage, Operating | 24 VDC |
Overview
Threaded LED Indicators, 80 mcd (Typ.) Luminous Intensity

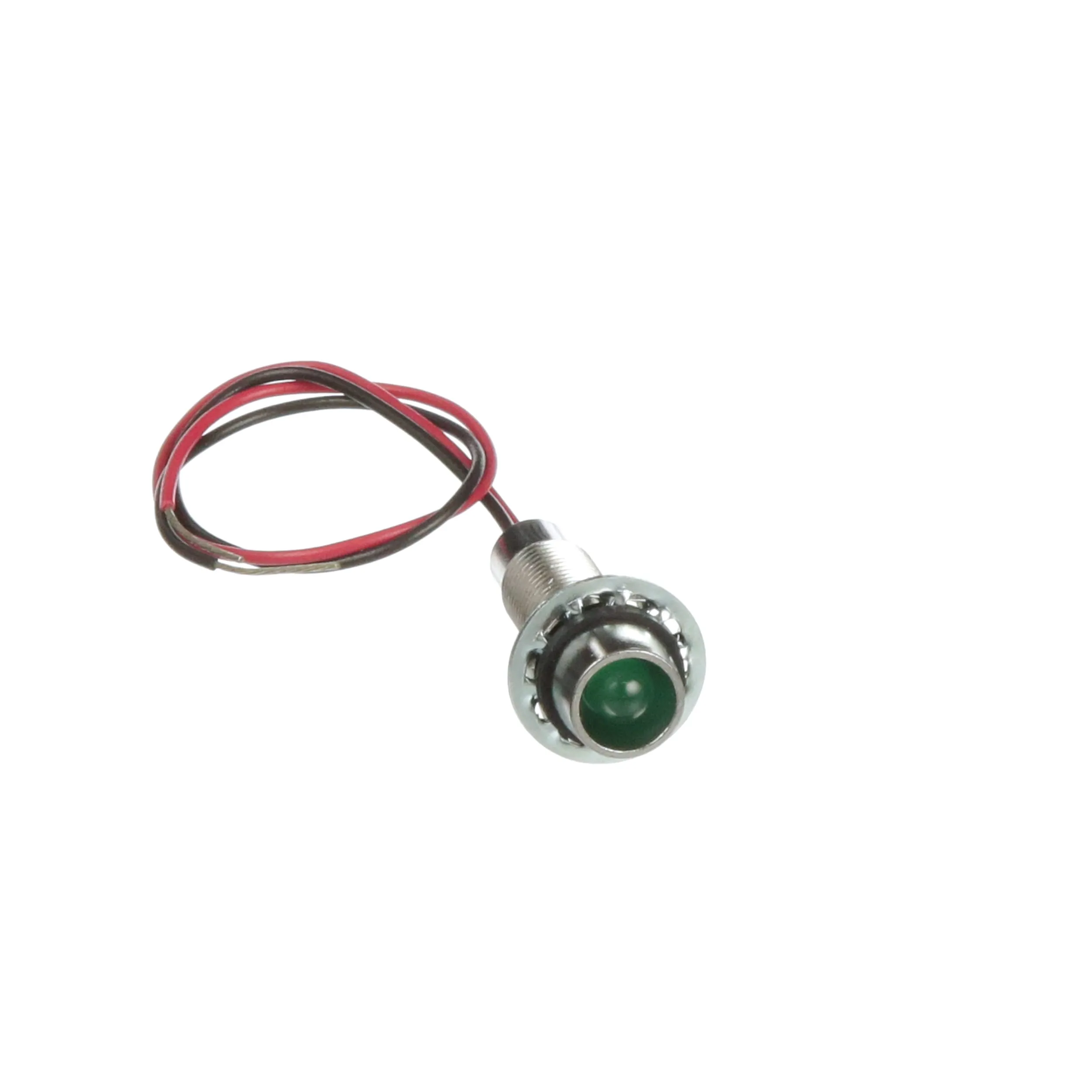

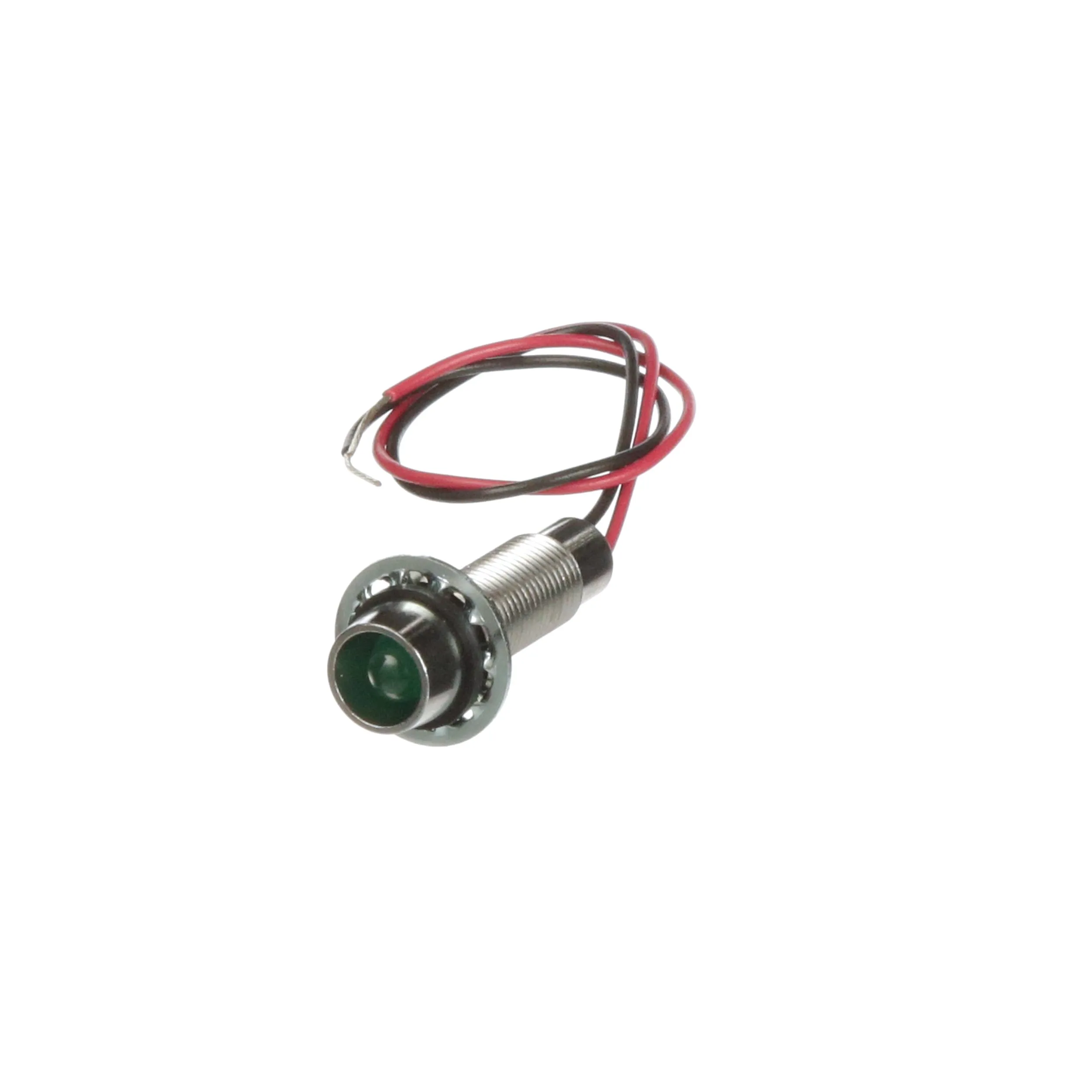

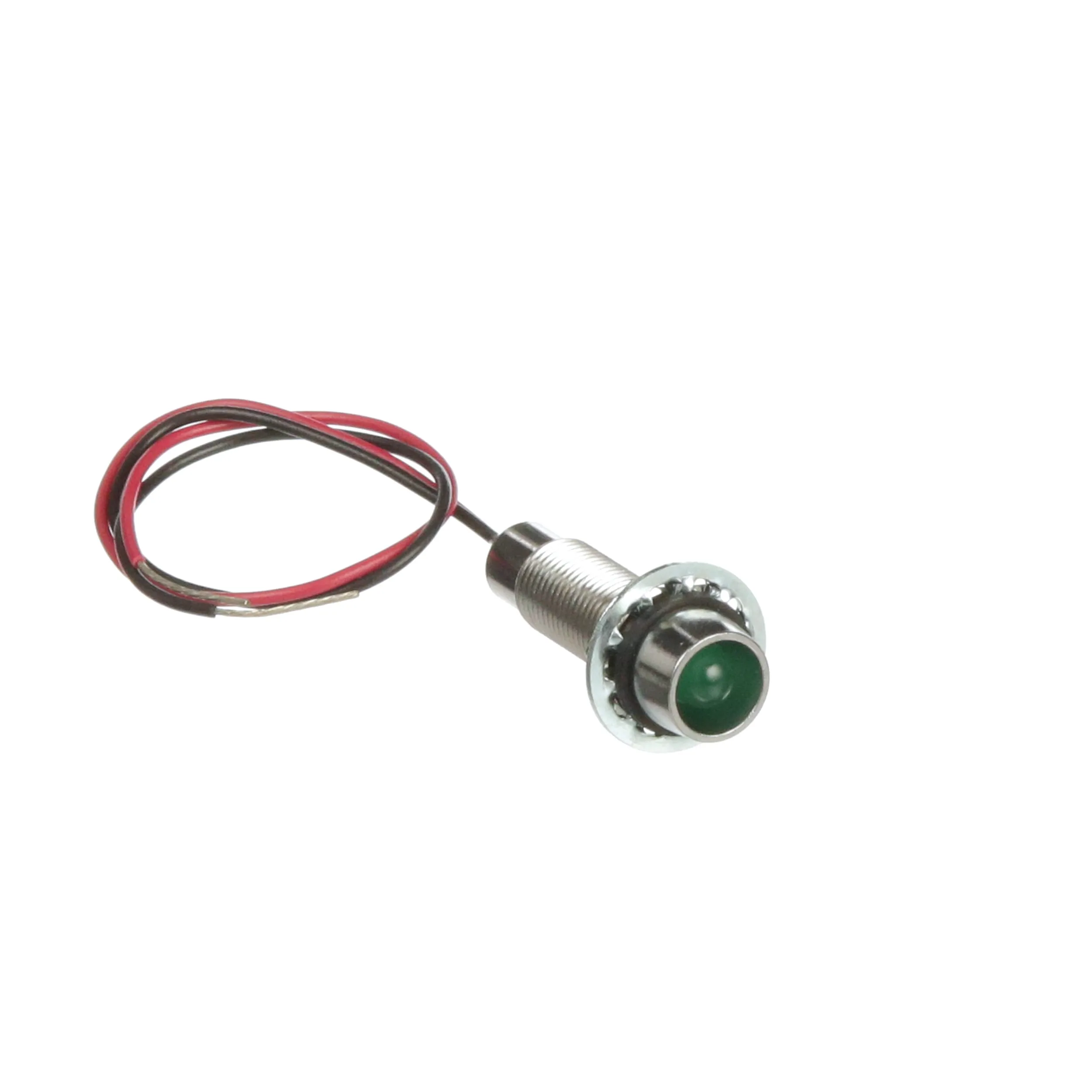

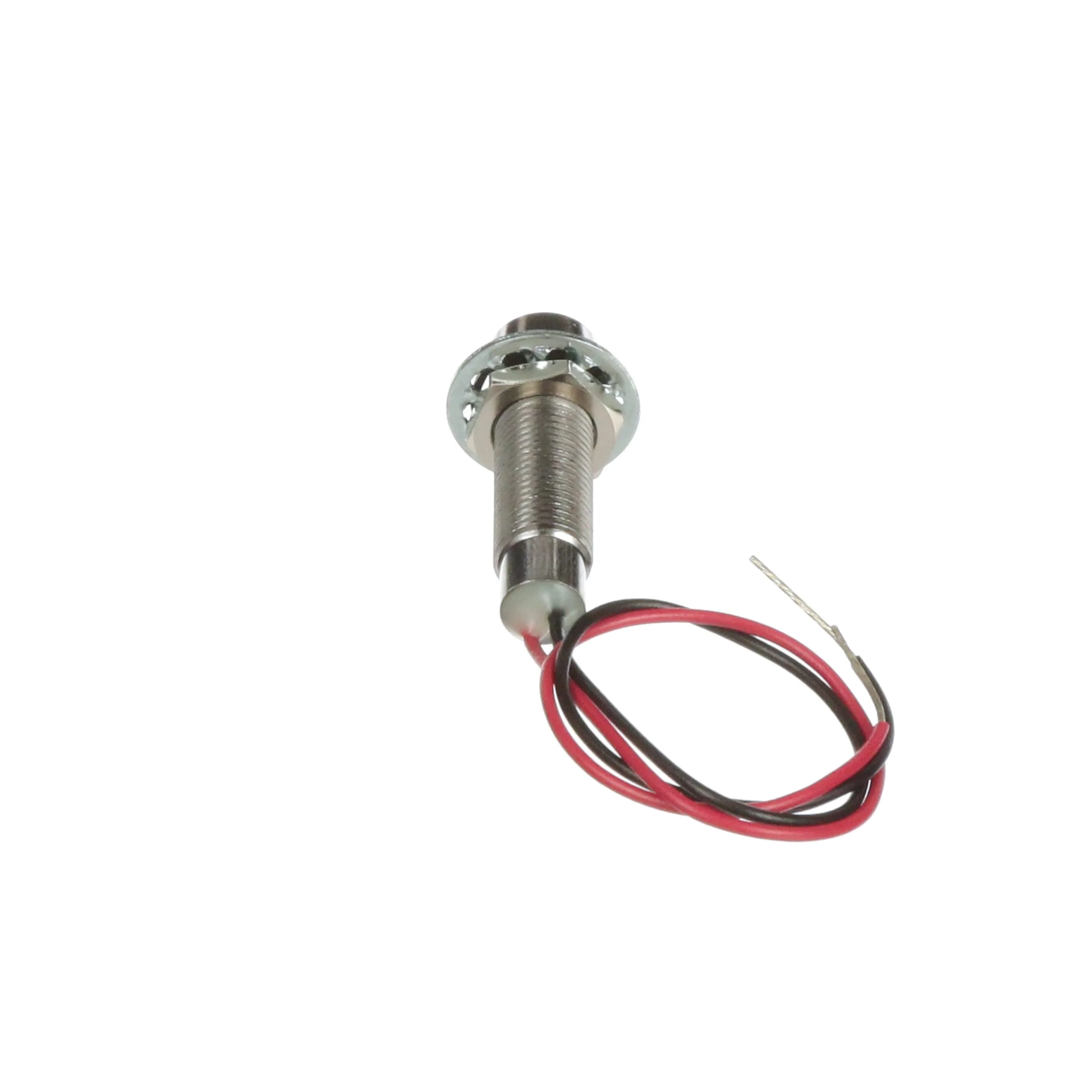

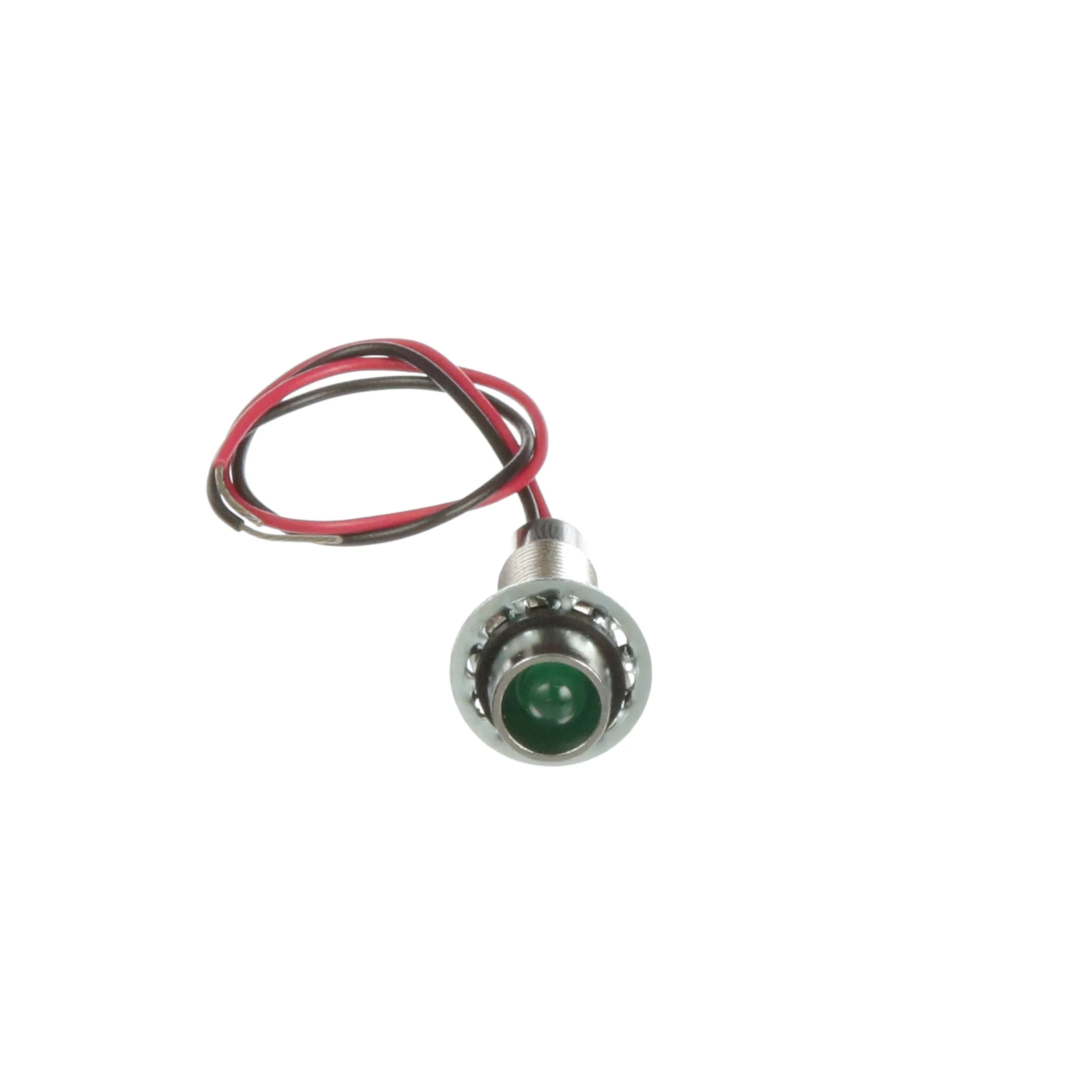

The L79 Series LED indicators are constructed with a threaded housing with a built-in reflector. Each unit has a high brightness diffused LED, two-color-coded 6" wire leads. 125 VAC unit has bipolar LED and two 6" white wire leads. Lights mount into a 5/16" diameter mounting hole with a maximum panel thickness of 0.250". A hex nut and lockwasher are supplied. Current: 20 mA typical. Clear LEDs, 2 V and 6 V and other colors are available.
