Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | LPV-100-24 |
| Application | LED Lighting |
| Depth | 0.079" (2mm) |
| Dimensions | 190 x 52 x 37 mm |
| Efficiency | 88 % |
| Input Voltage | 127 to 370 V dc, 90 to 264 V ac |
| Length | 7.48" (190mm) |
| Line Regulation | ±1 % |
| Load Regulation | ±2 % |
| Maximum Operating Temperature | 70 °C |
| Minimum Operating Temperature | -25 °C |
| Number of Outputs | 1 |
| Operating Temperature, Maximum | 70 °C |
| Operating Temperature, Minimum | -25 °C |
| Operation | Constant Voltage |
| Output Current | 4.2 A |
| Output Voltage | 24 V dc |
| Power Rating | 100.8 W |
| Shop By | Factory Choice |
| Temperature Operating Range | -25 to 70 °C |
| Type | Switch Mode |
| Voltage Rating | 127 to 370 V dc, 90 to 264 V ac |
Overview

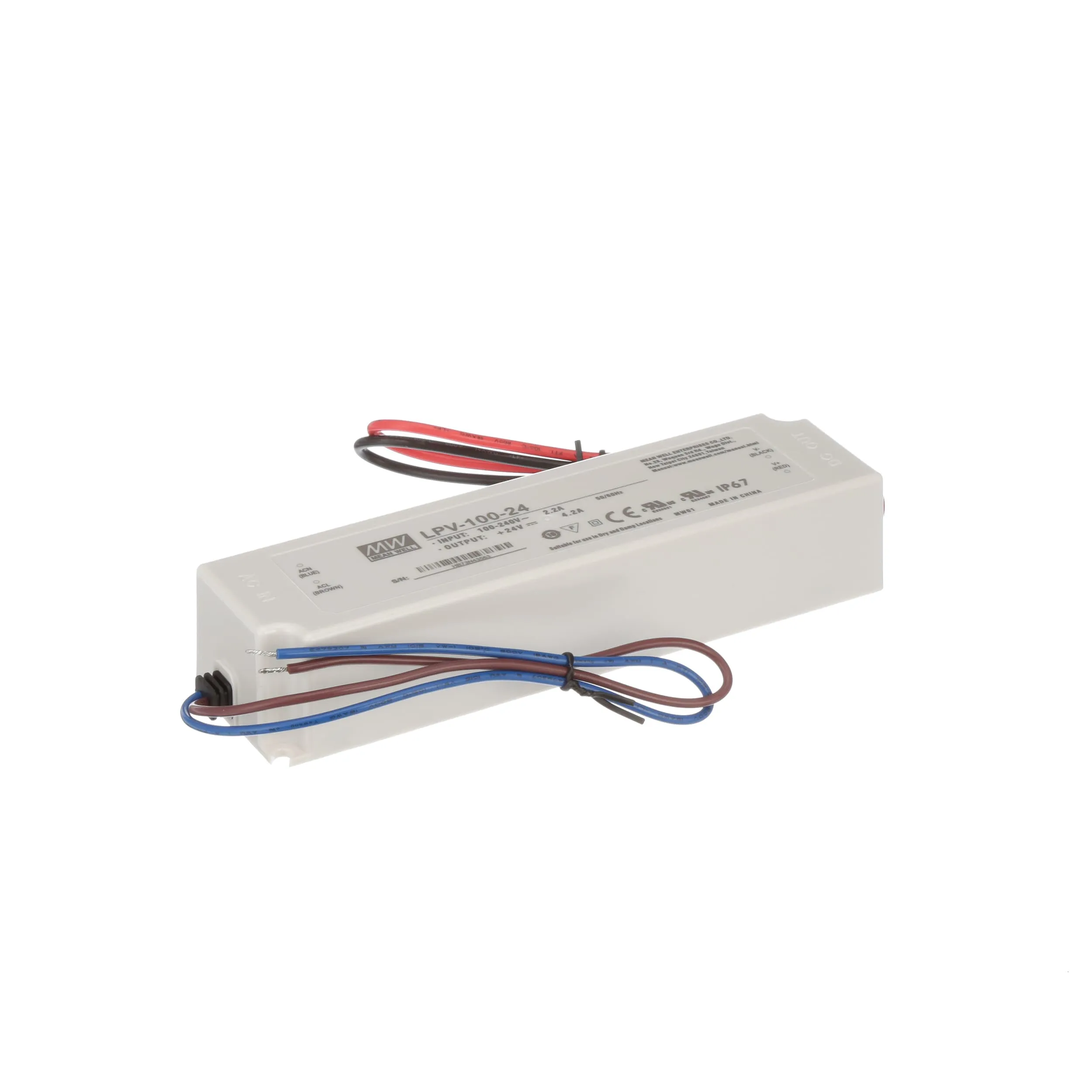

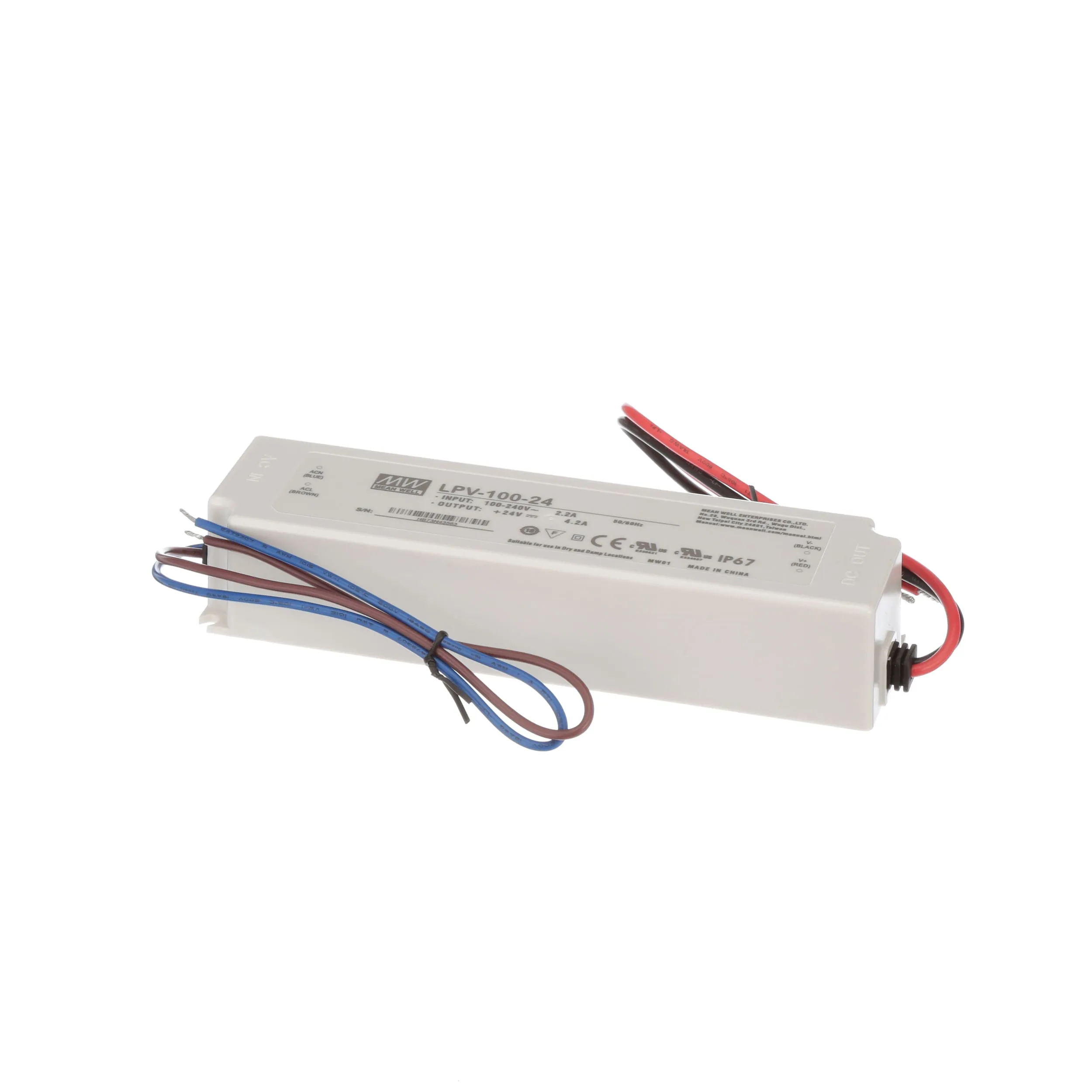

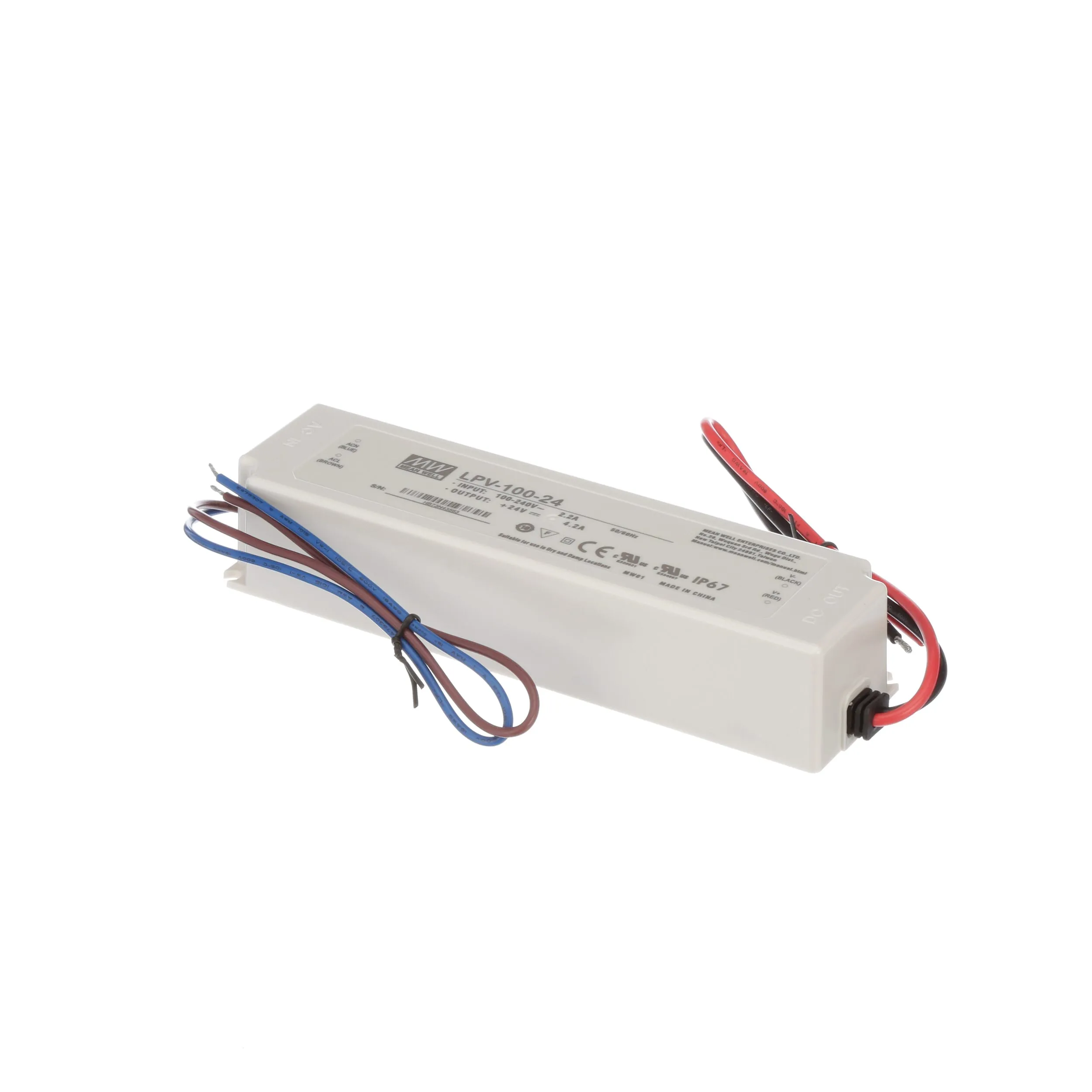

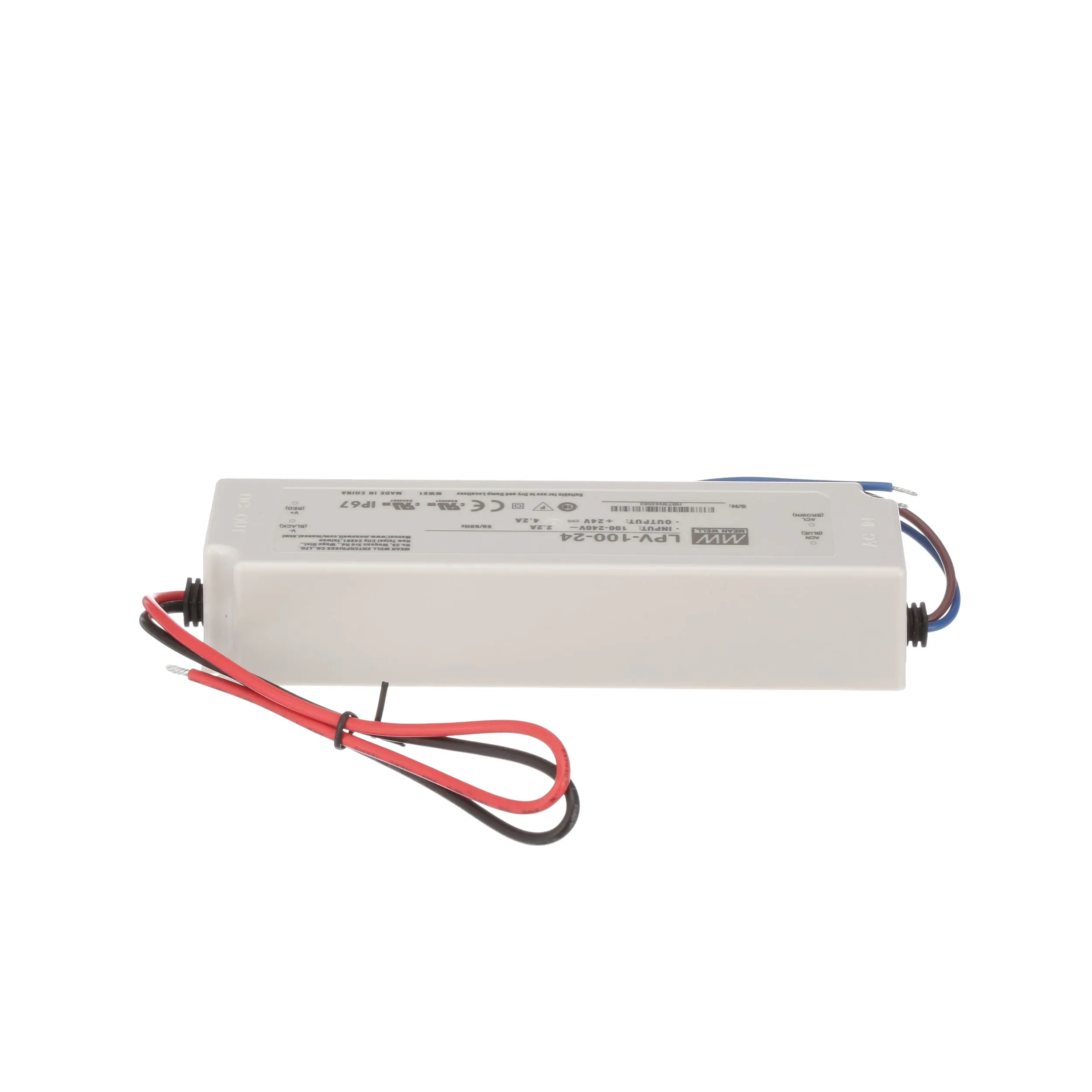

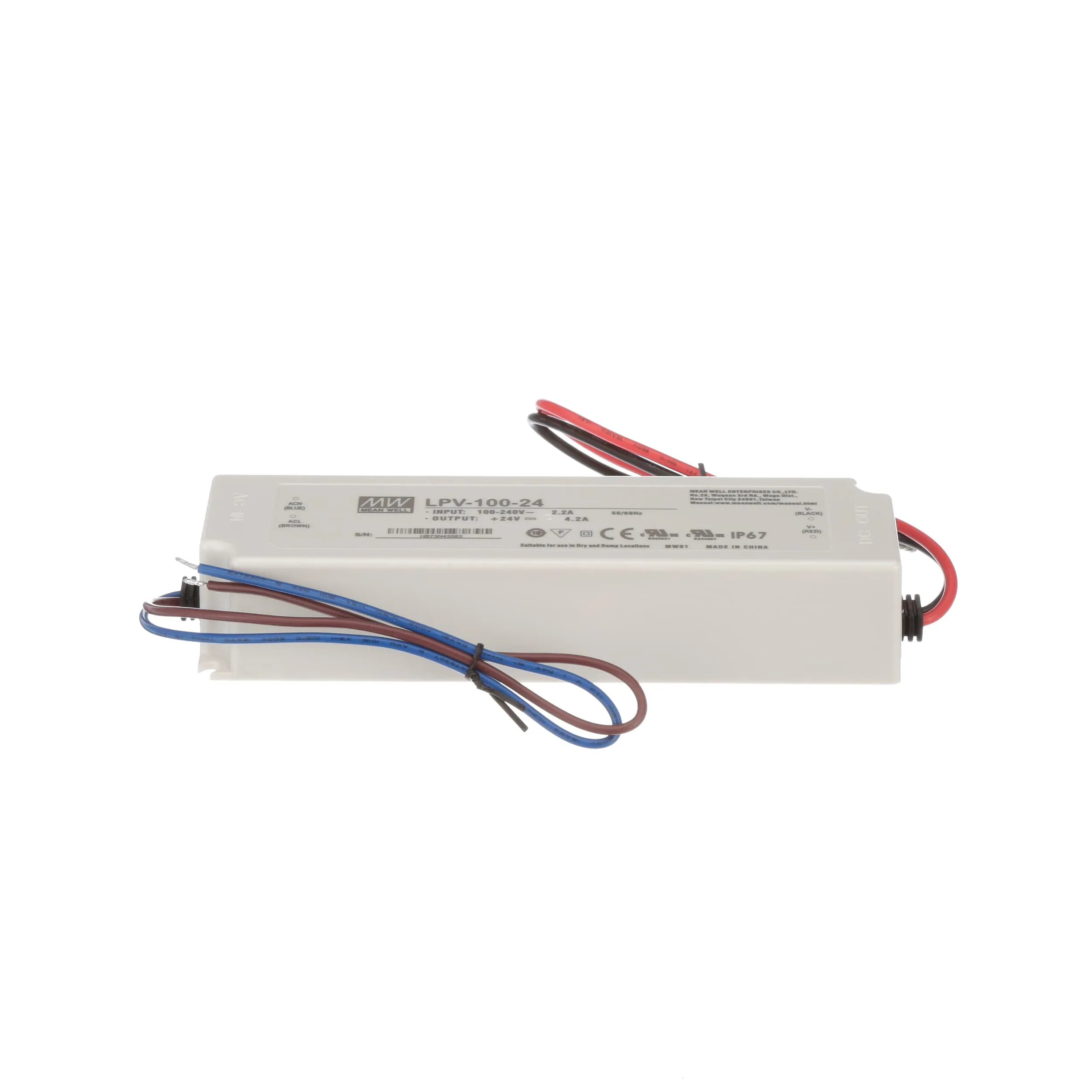

RS - 100W Waterproof (IP67) SMPSU
External, switch mode, encapsulated IP67 rated, constant voltage power supplies
High efficiency, long life and high reliability
Designed for indoor or outdoor installlations
Suitable for LED lighting and moving sign applications
Withstands 300Vac surge input for 5 seconds
100% full load burn-in test
Short circuit, over-current, over-voltage protection
300mm un-terminated, 2-core 18AWG input lead
300mm un-terminated, 2-core 14AWG output lead
EMC compliance to EN 55022 Class B
Harmonic current compliance to EN 61000-3-2,-3
