Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | Q14P5BXXB24E |
| Color | Blue |
| Current Rating | 20 mA |
| IP Rating | IP67 |
| Lamp Size | 0.394" (10mm) |
| Lamp Type | LED |
| Length | 0.876" (22.25mm) |
| Luminous Intensity | 540 mcd |
| Mounting Hole Size | 14 mm |
| Shop By | Factory Choice |
| Standards | UL |
| Supply Voltage | 24 VDC |
| Termination | Lead Wires |
| Type | General Purpose |
| UPC Code | 5056279026321 |
| Voltage Rating | 24 VDC |
| Warranty | 3 Year Warranty |
Overview

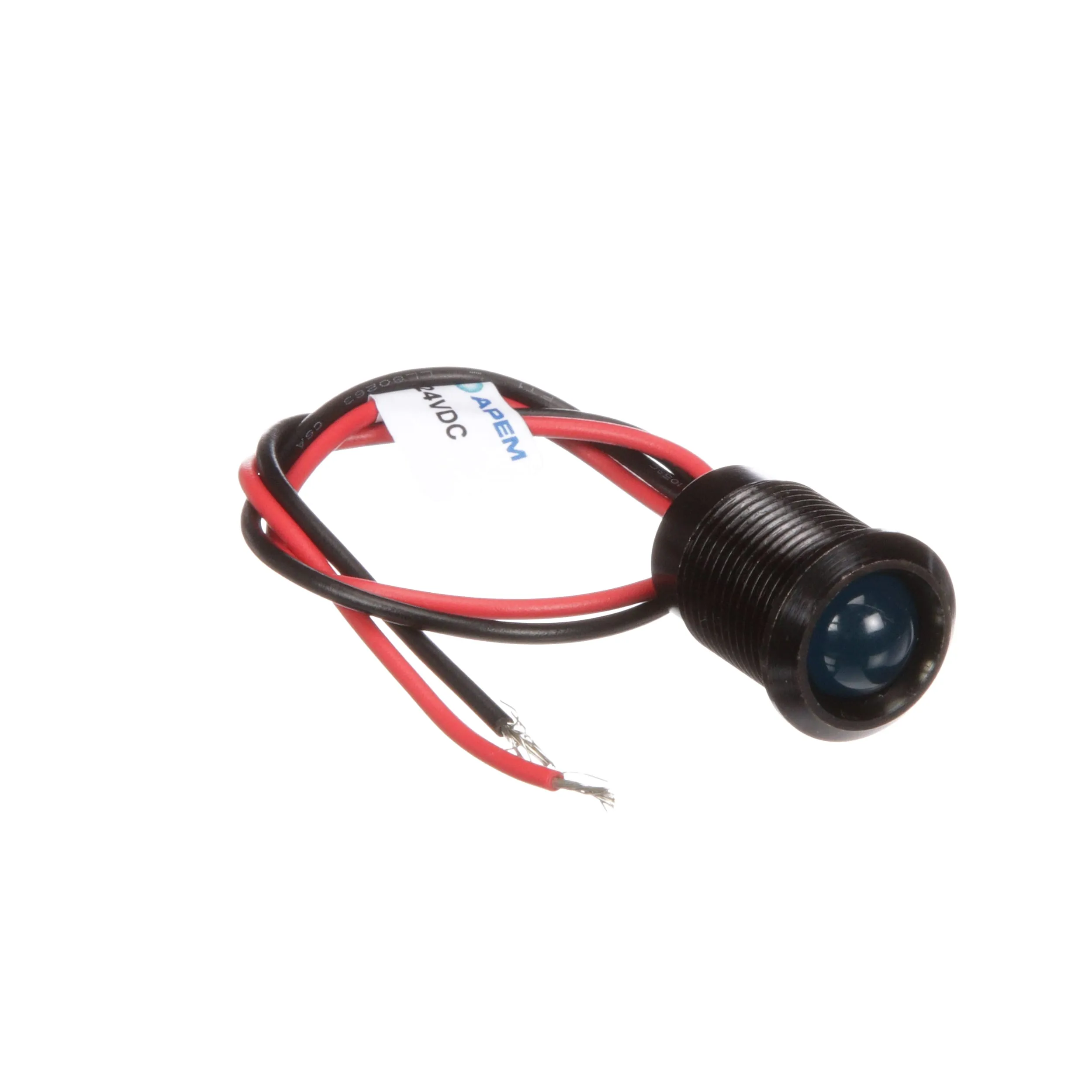

RS Pro 1076269 Series — 14 mm Rear Epoxy Sealed IP67 Short Body LED Indicators:
RS Pro range of 14 mm diameter panel mount short body LED indicators with 10 mm colored diffused LEDs. The indicators are available in bright or black chrome bezel finish with Prominent or flush bezel styles. Voltages in the range are available in 2 V, 12 V and 24 V dc, 110 V ac and 220 V ac. They are rear end potted with epoxy and 200 mm long wires and IP67 panel sealed.
NOTE*** 2 VDC LED indicators should not be operated without a stable series resistor or other current-limiting device.
