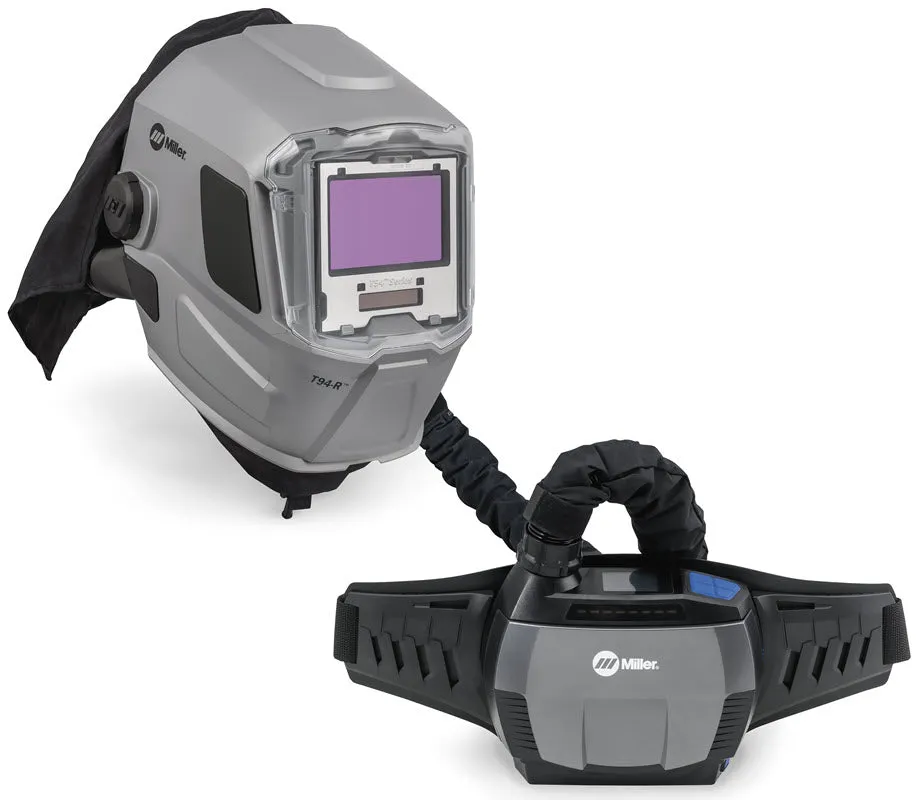

Miller® PAPR II with T94-R™ Auto Darkening Welding Helmet 292753

The Miller® PAPR II (Powered Air Purifying Respirator) with T94-R™ welding helmet comes complete with improved second generation blower motor. The T94-R welding hood features High-Definition View (HDV) front cover plate, Miller's ClearLight™ 2.0 lens technology and Dualtec™ air manifold. The ClearLight™ 2.0 auto-darkening lens offers ultra-clear optics with more realistic color hues in both light and dark states. Patent-pending Dualtec™ air manifold has six-point air distribution system that increases perceived cooling and operator comfort. High-Definition View welding lens cover provide a sharp, detailed view of the work piece at any angle, with minimal distortion.

The Gen. II PAPR blower motor weighs only 3 lbs. and has three air speeds to better customize the user experience. Innovative shoulder straps help to evenly distribute the weight of the unit for more comfort and less fatigue. Audible and vibrating alarms alert user to low battery and reduced air flow. The HEPA filter captures airborne particles as small as 0.3 microns and filters out weld fumes, mists and dust. The system comes complete with blower assembly, HEPA filter, six pre-filters, spark guard, breathing tube, breathing tube cover, padded belt, comfortable shoulder straps, two lithium-ion batteries, battery charger, flowmeter, tool bag and T94-R helmet assembly.



Process

Powered Air Purifying Respirator with Auto-Darkening Welding Helmet

Applications
Construction
Manufacturing
Fabrication
Stainless Steel
Flux Cored



Features

Patent-pending Dualtec™ manifold design
6-point airflow distribution system maximizes perceived cooling through targeted air placement.

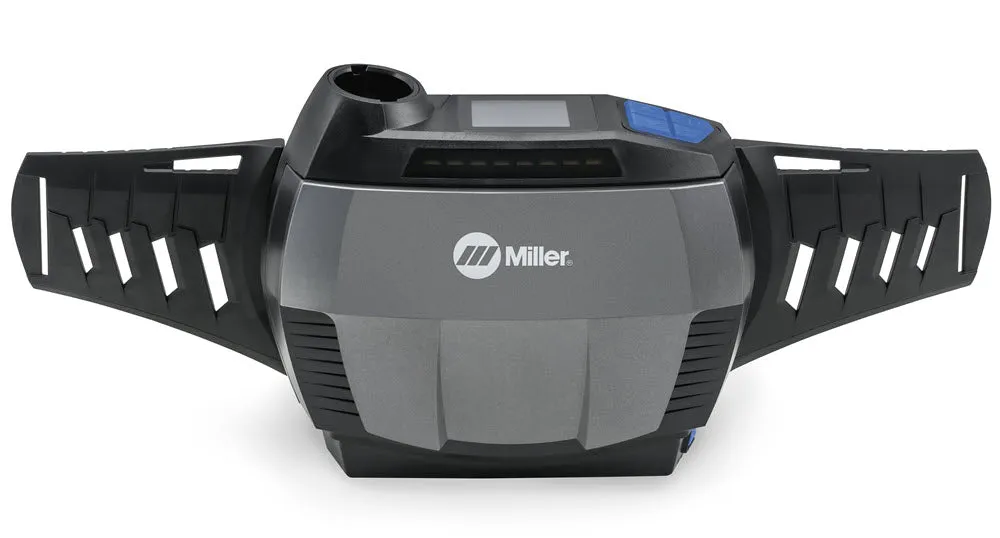

Lightweight Gen. 2 blower design
Provides all day comfort and reduces fatigue. Gen. 2 blower weight is just 3 lbs.

Comfortable shoulder straps
Distribute weight to provide a more comfortable and secure fit.

Three air speeds
Allow user to adjust the volume of air to maximize comfort in varied work conditions.

HEPA Filter
Captures airborne particles as small as 0.3 microns and filters out weld fumes, mists and dust.

Color LCD Display
Clearly displays fan speed, filter level, battery level and time of day.

Audible and vibrating alarms
Notify user of low battery and low airflow

Low-profile design
Reduces interference and allows for unrestricted movement.

Lightweight lithium ion battery
Provides up to 10 hours of battery life with no memory retention from frequent charging.
Two batteries are included with package.

Quick disconnect and swivel breathing tube
Provides easy adjust ability to accommodate space restraints

Flame-resistant cover
Protects breathing tube from sparks and abrasion for extended life

Flame-retardant, washable head seal
With ultra-soft outer cuff enhances wear without causing skin irritation. Unique design can provide additional protection by covering the ears, or ease communication if placed in front of the ears.

ClearLight™ 2.0 lens technology
Provides advanced, high-definition optics for the most realistic view that's clearer and brighter - before, during and after every weld.

High-Definition View (HDV) Technology
Provides a sharp detailed view at any angle with minimal distortion. This is found in the front cover lens.

Aluminum heat shield
Protects the digital lens in high amperage applications

Matte silver shell reflects heat
Keeps helmet and user cool

Shade 5.0 side windows
Enhance peripheral vision, amplifying sense of surroundings.

Convenient quick release
Provides easy access for front cover lens changes

Digital Controls With Four Operating Modes -

• Weld Mode™ Shades #8 - 13
• Cut Mode™ Shades #5 - 8
• Grind Mode - Light State #3
• X-Mode™ Shades #8 - 13

X-Mode™
Electromagnetic Arc Sensing for: Sunlight interference outdoors, Low-Amperage TIG, Pipe/Curves, Obstructed Sensors & Hidden/Cavity Welds

Half-shade lens adjustments
Provides fine shade adjustment for optimized comfort and vision.
Allow for precise lens adjustments based on the environment

Infotrac™ 2.0
Allows for monitoring of arc time and arc count

Digital controls
Easily allow welder to make precise lens adjustments to shade, delay and sensitivity.

Memory function
For easy switching between two preset customized memory settings.

Integrated mag lens holder

Lithium batteries with solar assist;
Up to 3,000 hours of life

Meets ANSI Z87.1-2020
Most up-to-date safety standard

PAPR 2 Specs

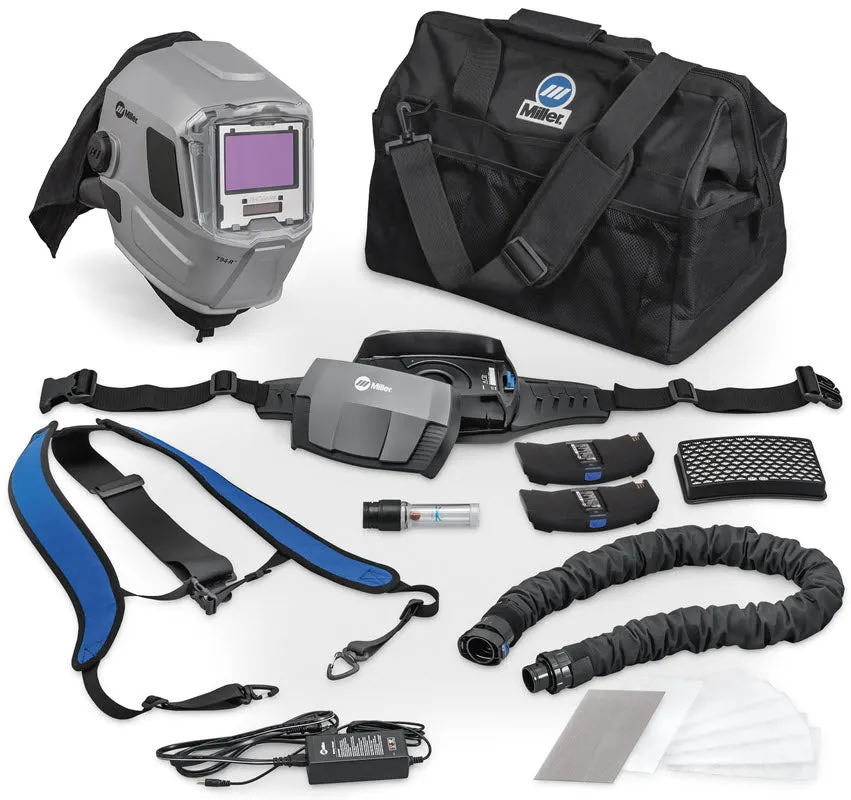

Comes complete with

Compact PAPR 2 blower unit

T94-R™ welding helmet with head-seal

HEPA filter

Pre-filter

Spark guard

Padded belt

Comfortable shoulder straps

2 - Lightweight, long-life lithium ion batteries

Battery charger

Air flow indicator

Tool bag
