Description:

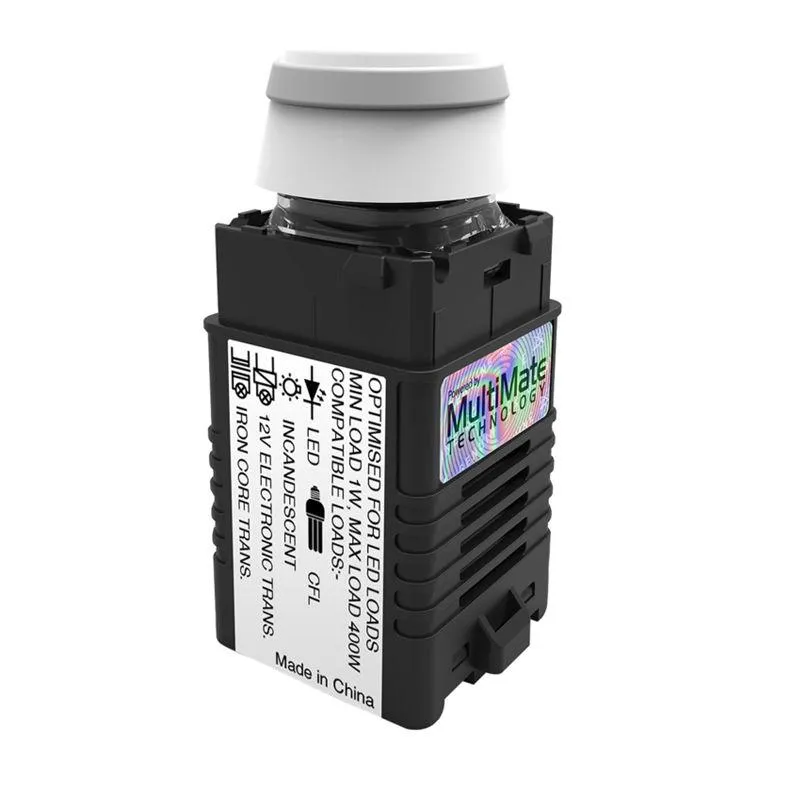

Designed in Australia to provide optimised dimming of LED based lamps and drivers, this high quality, two-wire phase control dimmer can be connected in parallel to other LEDsmart devices to provide a simple solution to multi-way control.

Features:

• Built-in multiway control.
• Rotary dimming.
• Built in Tap on / Tap off switch.
• Fully programmable functions.
• Quick flick dial feature to go to maximum or minimum lighting.
• Double tap to dim to minimum or maximum over 30 minutes.
• Illuminated bezel via white LED indicators.

Functions:

• • Single-way control
• • Two-way control
• • Multi-way control
• • Indicator - white LED
• • Rotary dial
• • Integrated tap on /off switch
• • Programmable minimum and maximum
• • Programmable kick-start function
• • Programmable off-state indicator
• • Kids bedroom mode - double tap to dim down over 30 minutes
• • Wake up mode - double tap to dim up over 30 minutes

Specifications:

• Rated average life: 5000hrs
• Wattage: 400w
• Operating Temperature (Max): 50
• IP Rating: IP20
• Line Voltage Frequency: 50Hz
• Nominal Line Voltage: 220 - 240v AC
• Connection Type: 2-Wire Active/Load
• Incompatible Load Types: Ceiling Sweep Fan Motors
• Indicator Colour: White
• Integrated On/Off Switch: No
• Minimum Load: 2w
• Programmable: Yes
• Dimmable: Yes

Dimensions:

• Length: 24mm
• Width: 24mm
• Height: 50mm

Order Code:
MMDM/RT
