36" Square Flat Pan Electronic Ignition HPC Fire Pit Insert 36FSSEI-SQ Product Details
Overview
The company's foundation was built on a safety pilot valve, millivolt valve, remote control gas fire pit kits/repair parts, and various other components for the hearth industry. We then diversified our thinking by introducing the Outdoor Fire Products line in 2003 with the manufacturing of fire rings. Today, this business segment has grown to include high-end electronic ignition fire pits, push-button ignition fire pits, TK Torches, portable fire pits, copper water bowls, outdoor fireplace accessories, and fire and water features, and a selection of stainless steel components second to none.
HPC Fire Inspired™ also designs custom fire features and their control systems of any shape or size for residential or commercial applications. These range from 2 feet to 30 feet wide, from 50 thousand to 3 million Btu fire features found at large venues throughout the country including casinos, resorts, and restaurants.
An HPC Original – this stainless steel, spun bowl design was launched in 2004… and today is still our most popular pan style.

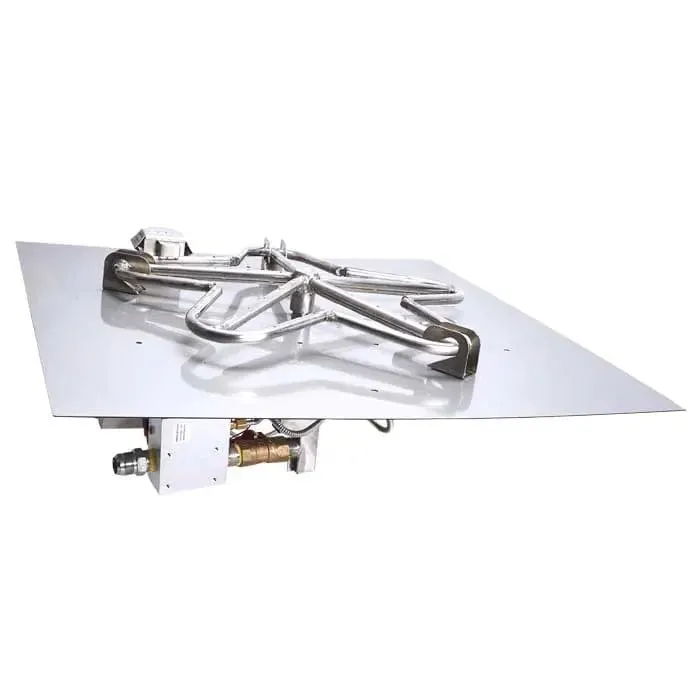

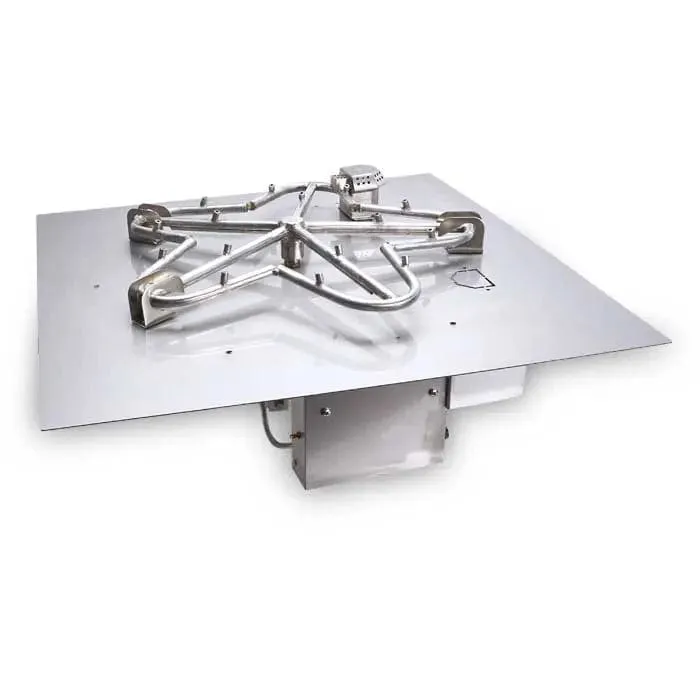

The HPC 36" Square Flat Pan Electronic Ignition Fire Pit Insert 36FSSEI-SQ is a fully assembled, commercial-grade certified Fire Pit insert. With a powerful high-quality construction material that has the latest technology, this will complement your gas fire pit project.
The Electronic Ignition design allows for a remotely controlled Fire Pit with an On/off or HI/LO setting. There is a flame sensing system that automatically shuts the gas valve if the flames get turned off.
There is a sidewall that aids with media retention, Pan Lip provides for the recessed burner and blowout box
Purchase the HPC Fire EI Square Flat Pan Gas Fire Kit 36FSSEI-SQ here in Flame Authority!
Features
Features:
- Fully Assembled- ready to install. Control components are protected within the valve box.
- Start via wall switch or remote control; Auto re-light if the flame is lost.
- Ignition is complete using a robust and reliable Hot Surface igniter
- On/Off models: Use with an optional wall switch, Remote Control, or your whole house system
- High/Low Flame Control Models: Adjust high setting to low setting- ~45% turndown (Remote Control included). Not for use with your whole house system.
- 120vac: Standard outdoor grounded power cord- simply plug into GFCI outlet.
- Natural Gas or Liquid Propane: Factory built & tested for either fuel.
- Internal temperature monitoring with overheat auto shutoff
Manuals
Manuals:
Need assistance? Talk to an Expert at 1-800-923-4556 or email: support@flameauthority.com to get the best-suited Fire Pit Burner Kits for your needs.
Specifications
Specifications:
- Model: 36FSSEI-SQ
- Dimensions: L-36" x W-36"
- Max BTU: 250,000
- Nozzle BTU: 275,000
- Burner Type: 30" Penta Standard / Torpedo
- Gas Type: Natural Gas / Liquid Propane
- Power Options: 120VAC / 24VAC
- Ignition Style: Electronic Ignition On-Off / Hi-Lo (Bluetooth App)
- Required Items: Lava Rock / Rolled Lava Stones ( 6 bags ), Flex-Form Install Collar( 2 boxes ), Fire Glass ( 140 lbs ), River Rock ( 4 boxes )
- Certification: CSA Certified in US & Canada to ANSI Z21.97-2017 / CSA 2.41-2014 requirements. (This new EI system already meets upcoming 2020 ANSI requirements).
- Warranty: Lifetime warranty on burners
Outdoor Fire Logs and Rocks
Arizona Weathered Oak
Aspen Birch
Rolled Lava Stone
- 6 Bags Required for this unit
Western Driftwood
Lava Rock
- 6 Bags Required for this unit
Black Ceramic River Rock
- 4 Boxes required for this unit
Fire Glass Media
- 150 lbs Required for this unit
Cobalt Blue
Pacific Blue
Pacific Blue Reflective
Black
Clear
Starfire
Gray Reflective
Copper
Bronze
Optional Accessories
- POWER SUPPLIES - FOR 24VAC & 12VAC MODELS
- Input Primary - 120VAC, 60/50Hz, 1A max Output Secondary - 24VAC & 12VAC, 60/50Hz, 4A
- 120 VAC Outdoor On/Off Remote Control
- Used with EI Fire Pit Systems
- CARLON in-line power control with 3 prongs in/out
- Stainless Steel Rotary Timer
- Available in 2 and 12-hour timer
- 1/2” deep. Double gang box recommended.
- Rotary Timer with NEMA Box
- Available in 2 and 12-hour timer
- NEMA 3R Box with 694 or 695 timer
- Includes timer mounted into the NEMA 3R box for your convenience
- Commercial Emergency Stop
- Push-button with keyed reset allows supervisor confirmation.
- Safely turns off up to 3 circuits plus one fail-safe function.
