Product Details
＋
Geist BR120-10 Rack-Mountable Power Distribution Unit

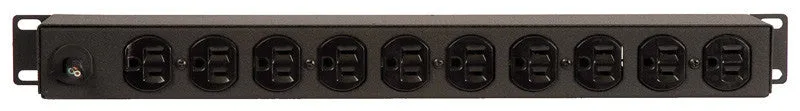

Geist Manufacturing's base BR120-10 rack-mountable power distribution unit is ideal for use in data-center, industrial and laboratory environments. This 15 amp breaker unit, contains 12 outlets - 2 on the front and 10 on the rear (6 duplexes), a standard 10' power cord, LED power-on indicator and power switch.
Specifications
- Quantity Of Inputs 1
- Voltage 125
- Amperage 15
- VA per Input 1875 (15 x 125)
- Frequency 50/60 Hz
- Over Current Protection 15 AMP Thermal Breaker
- Switch Yes - Embossed
- Indicators - LED(s) 1
- Power Cable Wire Gauge 14/3
- Power Cable Length 10'
- Plug Type NEMA 5-15P
- Type NEMA 5-15R
- Quantity on Face 2
- Quantity on Rear 10
- Style Duplex
- Maximum Output per Receptacle/Socket 15A
- Voltage per Receptacle/Socket 125
- Heavy Steel - Black Powder Coat Yes
- Made in the USA Yes
- Configuration 19" Horizontal Rackmount
- Flush Mount Yes
- Product Warranty Lifetime
- Certification/Agency Approvals UL & c-UL Recognized to 1363 Standards
- Certification/Agency Approvals RoHS Compliant
- Chassis Dimensions (HxWxD) 1.72" x 17" x 3.75"
- Unit Weight 6 lbs.
