RYD Motorsports OBS 05 SUPERDUTY AXLE CONVERSION KIT

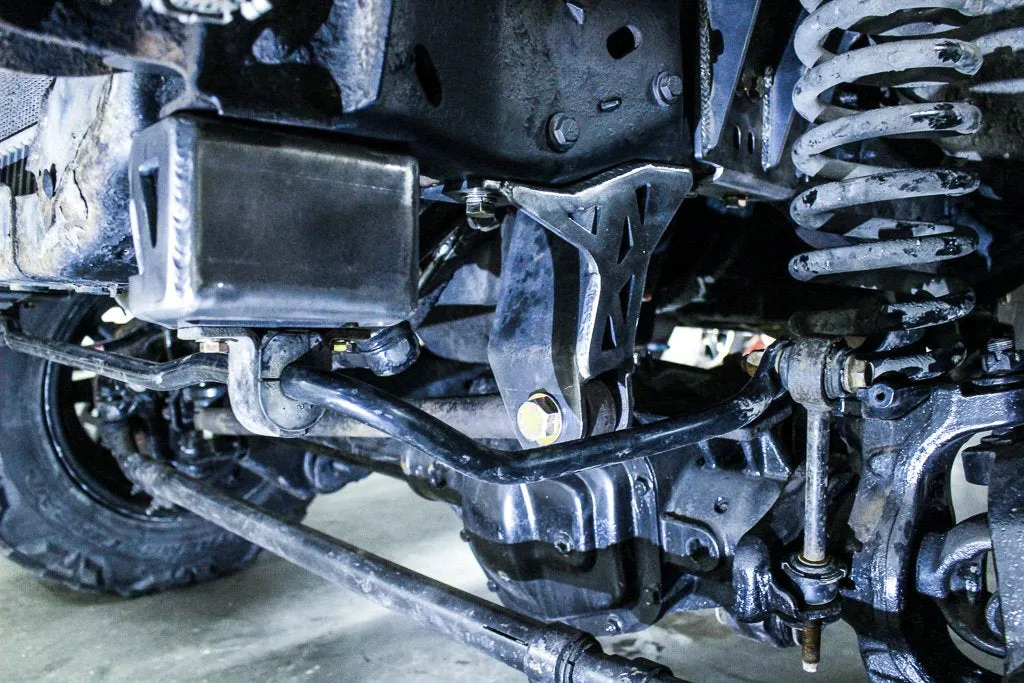

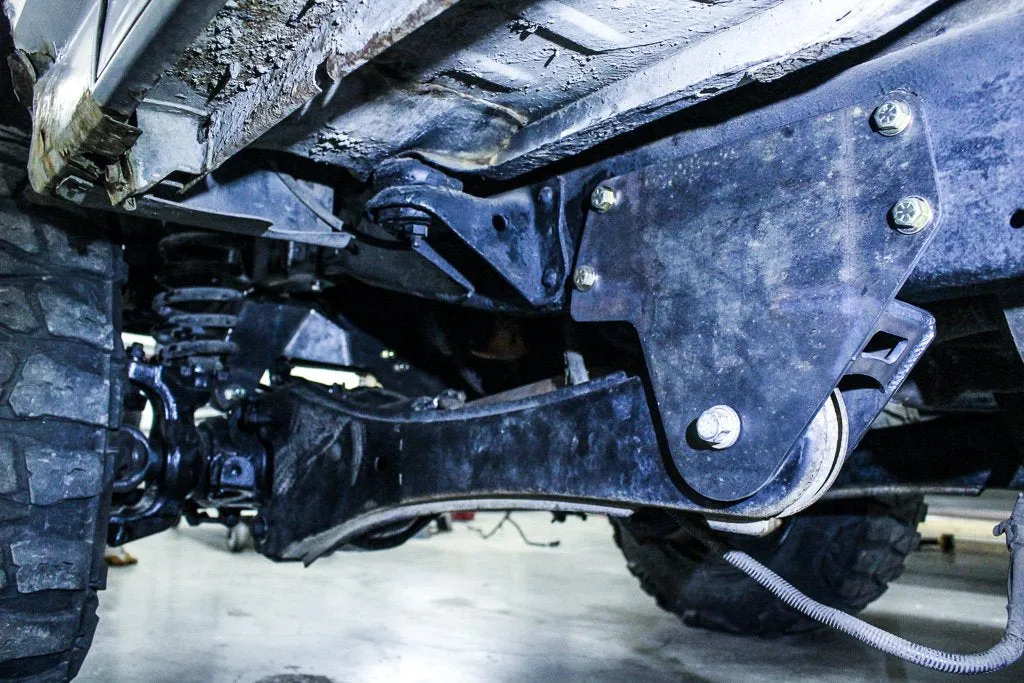

This is the entry level 05 Superduty Axle Conversion Kit which was designed to use all the factory parts from the Superduty suspension and steering to keep things and simple as possible.

All these brackets are bolt in and locate from existing holes in the frame of a 4x4. If you are converting your truck from 2wd we can provide you with measurement for where to drill holds for the brackets.

Add the  to bolt your OBS Driveshafts up to the Superduty Axles

Upgrade your 05 Superduty Axle Swap by replacing the radius arms with the ! The 4-link conversion offers improved stability, strength and caster control during wheel travel.

NOTE: If you have a ZF5 Transmission you will need to use the !

**Driveshafts may need to be shortened or Lengthened**

No welding required

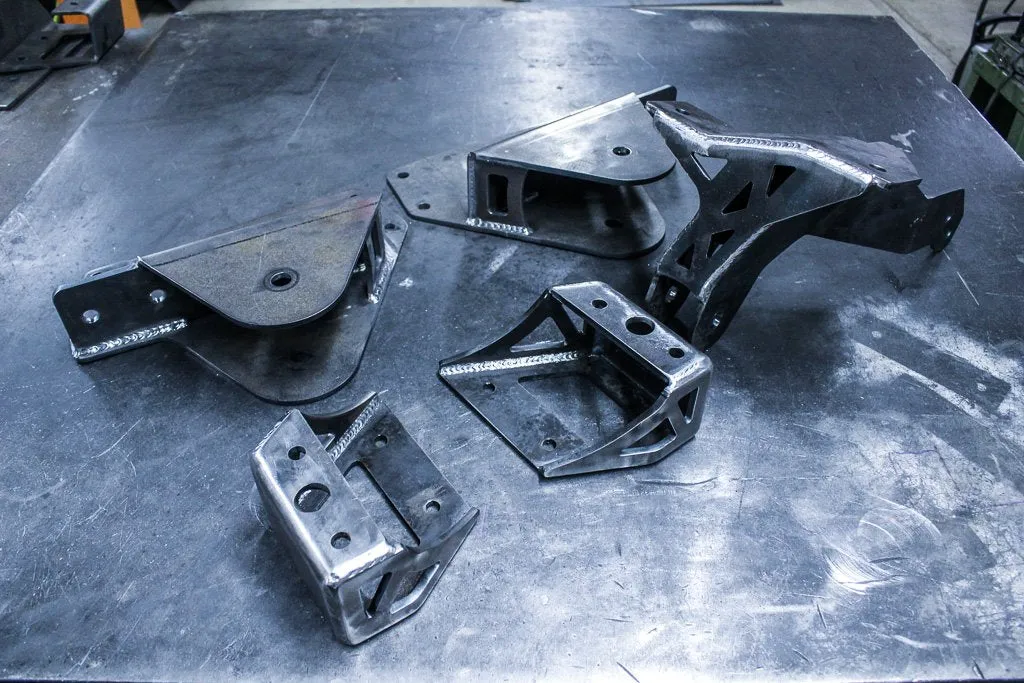

Kit Includes

  • Coil Buckets
  • Trac Bar Bracket
  • Radius Arm Brackets
  • Sway Bar Brackets
  • Pitman Arm (machined to accept superduty steering)
  • Grade 8 Hardware

Optional

  •

Parts You Will Need From 05 Superduty

  • Front Axle
  • Coil Springs
  • Trac Bar
  • Steering
  • Sway Bar and End Links

    **FOR OFF-ROAD USE ONLY**

FORD OBS AXLE CONVERSION KIT (05 SUPERDUTY SWAP)
  • 20052007
  • 20082010
  • 20112017
  • NoBrakeLines
  • StainlessBrakeLines

$ 69.03

$ 53.10
