Brand: DODORO

Features:

• ✔For all cars. Our HUD is different from other OBD2 HUD displays. It collects data via the car's A2 ECU. The HUD's built-in GPS signal-receiving module can calculate your driving speed and offer you real - more accurate - data;
• ✔It has a 3.5-inch, multi-color LED. It can produce a large font and has an auto/manual brightness adjustment. The screen surface uses nanotechnology to eliminate excess light reflection, making it easy to read even during daytime;

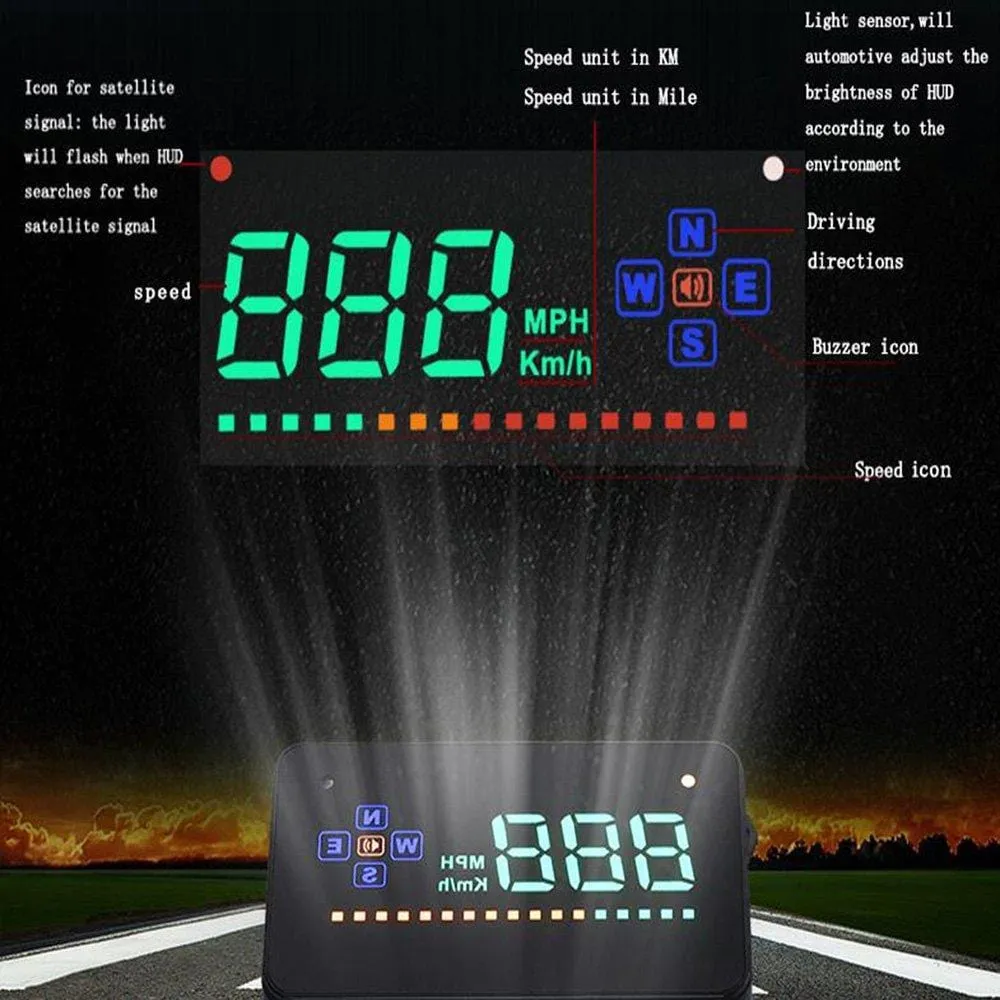

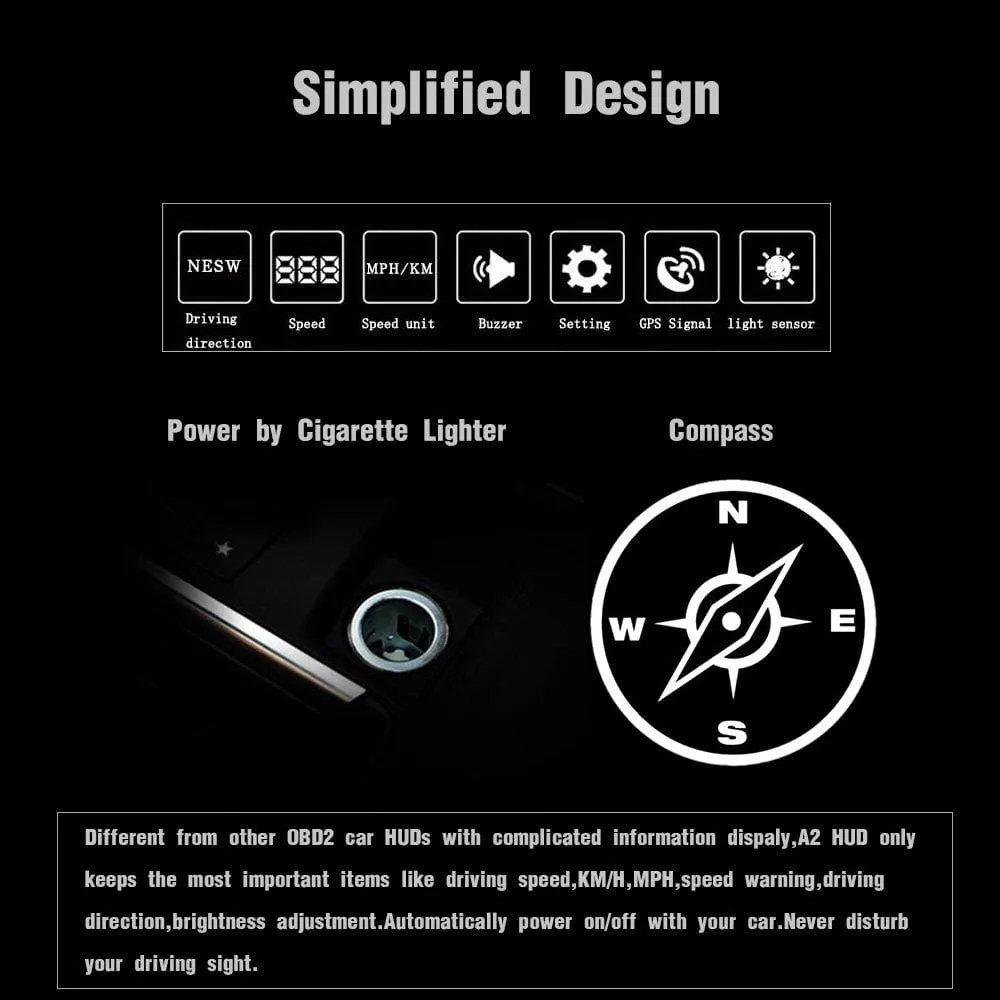

• ✔The unit has a simple design. Instead of presenting complicated information, it only displays the most important measurements, such as driving speed (km/h, mph), speed-limit warning and directions. It does not interfere with your view. The unit also automatically powers on and off with your car, so it will not run down your battery. It also has a convenient manual on/off switch;
• ✔Plug & Play. It is powered by the DC8-24V cigarette lighter and is compatible with all cars and trucks;
• ✔ Item from DODORO,make sure you choose DOODORO's no worries purchase.

Publisher: DODORO

Details: Dial wheel use method:
Dial wheel, used for setting, you can dial up, dial down or vertical press to set related parameters. (When dial wheel in the left)
Long Vertical press:press for 5 seconds,enter into setting mode.
There're 6 items to set.After adjustment,Long Vertical press for 5 seconds to save your setting and exsit.
Short Vertical press:in turn display 6 items setting,they are speed,speeding warning,brightness,speed unit,
the voltage of hud anto power off and read mode.
Short Dial Up:Increase the parameter value when in setting mode
Short Dial Down:Reduce parameter values when in setting mode

HUD Setting
Let's take rpm unit switch setting for example.
a.Long vertical press the dial wheel for 5 seconds enter into setting mode.
b.Dial up and down to select setting item,there're 6 items for setting( you'll see the lights on at the bottom."1" is speed，"2" is speeding warning，"3" is another speeding value warning,"4" is brightness adjustment，"5" speed unit switch.，"6" is factory reset. )
c.So we just choose the "5" item speed unit item,then dial up and down the dial wheel,adjust your right speed unit value.
d.Long vertical press the dial wheel for 5 seconds to save and exist.

Product Parameters:
Work Voltage: DC8-18-24V
Work Current: 40mA
Static Current: 15mA
Electronic compass accuracy: ±1°
Speed range:0-400KM
Item size: 90x54x12mm
Item weight: 40g

Package Includes:
1 x A2 HUD
1 x Cigarette Lighter connect Cable
1 x Reflecting Film
1 x Anti-slip Pad
1 x English User Manual

UPC: 613635073402

EAN: 613635073402

Package Dimensions: 6.6 x 5.3 x 1.7 inches
